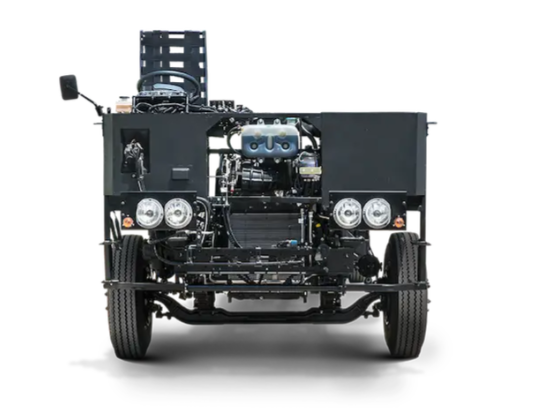

Eicher 2112 M Diesel – Chassis
Specifications
|
Specification |
Details |
|
Bus Model |
2112 M |
|
Wheelbase |
5330 mm |
|
Overall Length |
9856 mm |
|
Overall Width |
2413 mm |
|
Overall Height |
2785 mm |
|
Ground Clearance |
232 mm |
|
Front Overhang |
1370 mm |
|
Rear Overhang |
3156 mm |
|
Turning Circle Diameter |
19.4 m |
|
Engine Make |
E494 |
|
Displement |
3770 cc |
|
Power |
120 kW @ 2600 r/min |
|
Torque |
500 Nm @ 1200-1800 r/min |
|
Fuel Type |
Diesel |
|
Max. GVW |
13.1 t |
|
Application |
Chassis |
Frame & Drivetrain
|
Specification |
Details |
|

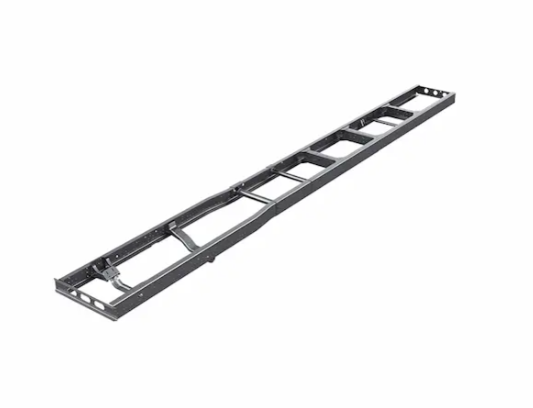

Chassis Type |
Domex 650 |
|
Chassis Dimension |
210 x 76 x 6 mm |
|
Clutch |
330 mm |
|
Transmission Make |
ET40S6 |
|
Transmission Type |
Synchromesh (6 Speed + 1 Reverse) |
|
Fuel Tank Capity |
190 litres |
|
DEF Tank Capity |
27 litres |
Suspension & Brakes
|
Specification |
Details |
|

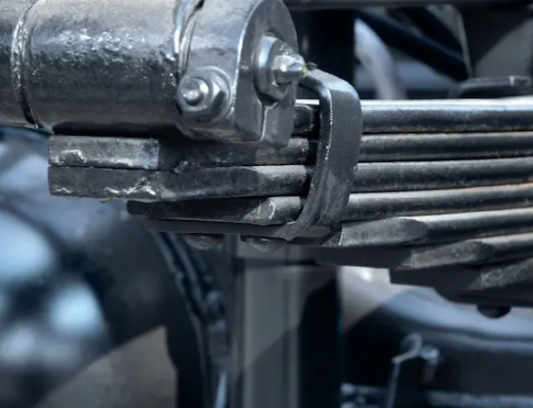

Suspension |
Wevellar Suspension |
|
Brakes |
Dual Circuit 'S' Cam Full Air Brakes |
|
Steering |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
9R20 - 16 PR |
Components & Features
|
Feature |
Details |
|
Feature: Fuel Efficiency |
Fuel Cohing |
|
Feature: Engine Performance |
MBooster+ |
|
Feature: Driving Control |
Cruise Control |
|
Feature: Telematics |
Eicher Live Telematics System |
|
Feature: Safety |
Seat Belts |
|
Feature: Safety |
Emergency Exit |
|
Feature: Comfort |
Air Conditioning () Unit |
